10X avago agilent msa-0486 bipolar mmic amplifier

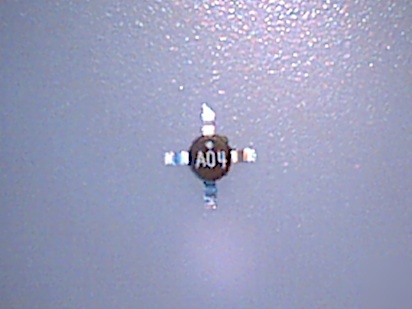

10x Avago Agilent MSA-0486 Bipolar MMIC Amplifier
The MSA-0486 is a high performance silicon bipolar Monolithic Microwave Integrated Circuit (MMIC) housed in a low cost, surface mount plastic package. This MMIC is designed for use as a general purpose 50 gain block. Typical applications include narrow and broad band IF and RF amplifiers in commercial and industrial applications.
The MSA-series is fabricated using Avago s 10 GHz fT, 25 GHz fMAX, silicon bipolar MMIC process which uses nitride self-alignment, ion implantation, and gold metallization to achieve excellent performance, uniformity and reliability. The use of an external bias resistor for temperature and current stability also allows bias flexibility.
* 12.5 dBm Typical P1 dB at 1.0 GHz
