IRGPH20M igbt transistor 1200V 6.9A lot of 25

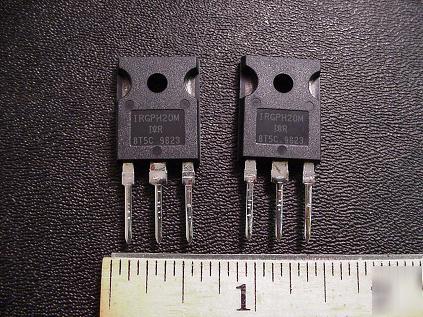

IRGPH20M IGBT Transistor 1200V 6.9A by International Rectifier
INSULATED GATE BIPOLAR TRANSISTOR
DESCRIPTION: Insulated Gate Bipolar Transistors (IGBTs) from International Rectifier have higher usable current densities than comparable bipolar transistors, while at the same time having simpler gate-drive requirements of the familiar power MOSFET. They provide substantial benefits to a host of high-voltage, high current applications.
These new short circuit rated devices are especially suited for motor control and other applications requiring short circuit withstand capability.
* Short circuit rated - 10us @ 125 C, V GE = 15V
* Switching-loss rating includes all "tail" losses
* Optimized for medium operating frequency (1 to 10kHz)
* Collector-to-Emitter Voltage: 1200V
* Continuous Collector Current 6.9A
* Operating Junction and Storage Temperature Range: -55 to +150 Degrees C
* Pricing is for a LOT of 25 parts.
These parts are new and unused - from manufacturer's rails. Very nice.
