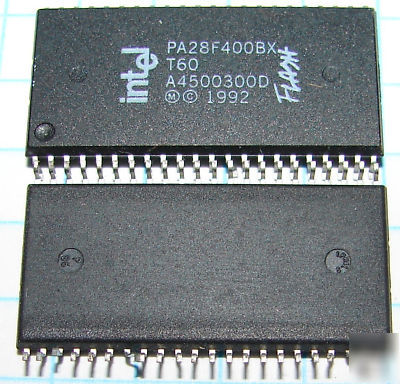

Intel 4-mbit boot block memory PA28F400BX-T60
Y x8/x16 Input/Output Architecture
For High Performance and High
Integration 16-bit and 32-bit CPUs
Y x8-only Input/Output Architecture
Y Upgradeable to Intel's Smart Voltage
Y Optimized High-Density Blocked
One 16-KB Protected Boot Block
Y Automated Word/Byte Write and Block
Y SRAM-Compatible Write Interface
Y Automatic Power Savings Feature
1 mA Typical ICC Active Current in
60/80/120 ns Maximum Access Time
30/40/40 ns Maximum Output Enable
20 mA Typical Active Read Current
Acts as Reset for Boot Operations
Y Extended Temperature Operation
Y Write Protection for Boot Block
Y Hardware Data Protection Feature
Erase/Write Lockout During Power
Industry Standard Surface Mount
28F400BX: JEDEC ROM Compatible
Y 12V Word/Byte Write and Block Erase
