O.K. Tool R-6 TOOL & CUTTER GRINDER, Radius & Tool Grin

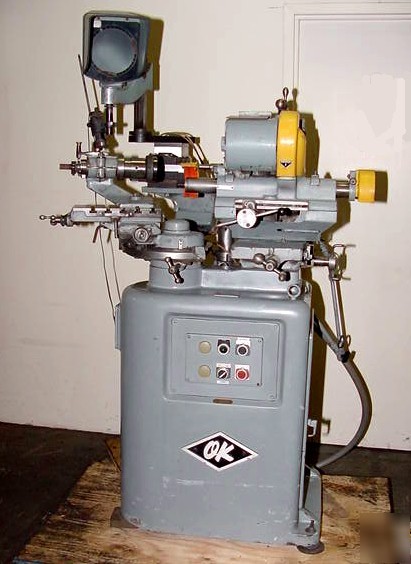

O.K. Tool R-6 TOOL & CUTTER GRINDER, Radius & Tool Grinder, Optical Comparator, Tooling
Model: R6 S/N: R89329 New 1989
-GRIND END MILLS, REAMERS, MILLING CUTTER,
COUNTERBORES, COUNTERSINKS, ALL LATHE, SHAPER
SPEED STEEL, INCLUDING THE FLUTE GRINDING OF
STRAIGHT FLUTED TOOLS (TAPS, COUNTERBORES,
-GRIND BALL NOSE, EVEN ON TAPERED TOOLS, & OTHER
-PUT ACCURATE CORNER RADII WITH PERFECT BLENDS ON
END MILLS, MILLING CUTTERS, REAMERS, OUNTERBORES
-GRIND CLEARANCE ANGLE ON REGULAR OR TAPERED
FLUTES, STRAIGHT OR HELICAL, AS WELL AS MULTIPLE
-WILL ACCOMODATE FLUTE LENGTH TO 4- 1/2".
-WORKHEAD FEATURES X & Y MOTIONS PLUS ROTARY
-GRINDING WHEELHEAD MOVES IN X, Y & Z.
-THE #R6 HAS AN ADDITIONAL GRINDING WHEELHEAD
FOR HAND GASHING OPERATIONS, SUCH AS OPENING
UP THE POINT OF A BALL NOSE CUTTER.
Maximum length of flute accommodated by
standard machine:....................... 4- 1/2"
Maximum mill diameter (for head with #9
B&S spindle) over table:................ 9-1/2"
Maximum mill diameter (for head with #9 B&S
spindle) in front of table:............. 12"
Axial Travel:............................. 4- 1/2"
Vertical adjustment:...................... 5-3/8"
Cross Travel:............................. 6-1/4"
By rack and pinion feed:................ 4"
By screw feed for fine adjustment:...... 2-1/4"
Work Table Size:............... 6-7/16" x 10-7/8"
Graduated swivel range:.............. 210 degrees
Adjustment toward and from swivel center:. 3-1/4"
Cross adjustment:......................... 1-1/4"
Tilting of cutter head (each way)......... 20 degrees
Wheel Spindle Speed, RPM:................. 5,000
Approx. Weight ......................... 1000 Lbs.
Optical Comparator Mounted on Independent
Bracket with Cross Sliding Positioning.
Ball Bearing Slides for Frictionless Movements
1/3 HP 3/60/230-460 Volt spindle drive motor
