Faraday cage screen room extension ~6.5X6.5X7.5' 2XSCRN

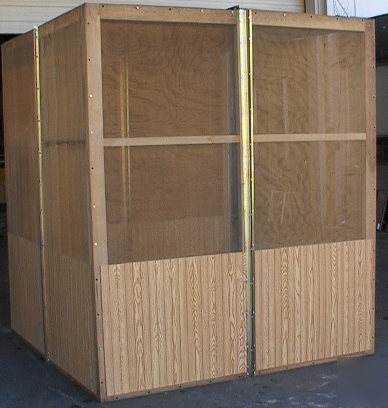

Very Nice Faraday Cage Screen Room Extension ~6.5x6.5x7.5 feet Double Screened.
This is an extension for a Faraday cage or screen room (to keep emi interference either in or out) for electronics testing purposes. There are 5 sides with contacting copper mesh screen (3-sides, the floor and ceiling). The floor has a tile floor that goes on top the screen so as not to damage it. The walls have protection on the lower section both inside and outside to guard against screen damage.
Please note that there are two layers of screen mesh. Both the inside and outside of the frames are covered.
There is a metal strip to fasten the two halves for the flooring together.
The screen room panels have dowel holes for putting the sections together with long bolts and the matting panels have metal strips with holes for bolting to insure that there is good pressure between screen sections for good electrical contact.
For display purposes, we did not fully position all the parts. As you can see in some of these images, The walls should be set up on the floor edges but we left them on the concrete.
The image for the floor in the other direction is missing but it is about 77 inches.
Might be just what you need for your screenroom faraday cage application.
Condition looks very good as shown above (not counting the optional extra panels).
