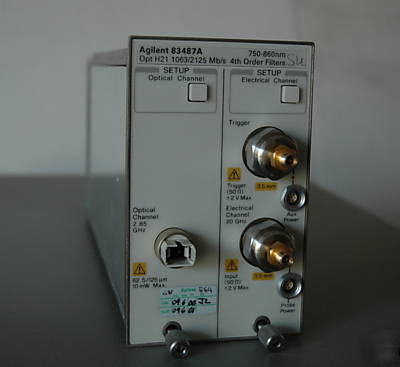

Agilent 83487A optical/electrical plug-in module w/ H21
Agilent 83487A Optical/Electrical Plug-In Module
The Agilent 83487A optical/electrical plug-in module is one of several plug-in
modules available for the Agilent 83480A, 54750A mainframes. The main features
* Integrated, calibrated optical channel.
* 2.85 GHz optical channel bandwidth and user selectable 12.4 or 20 GHz electrical channel bandwidth.
* 750 nm to 860 nm wavelength range.
* Optical channel has 1063/1250 Mb/s datacom filters.
* 62.5/125 m (maximum) multimode, user selectable optical input connector option.
* Electrical measurement channel.
* Trigger channel input to the mainframe.
* 3.5 mm (m) connectors on the electrical measurement channel and trigger channel.
* One probe power connector.
* One auxiliary power connector.
