> 35 ton stamtec gap frame open back press G1-35 low hrs

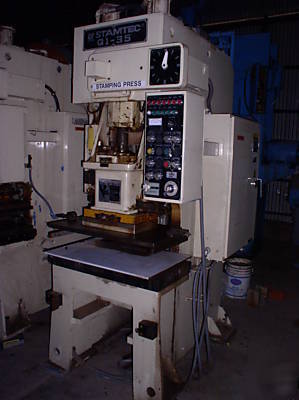

35 ton stamtec gap frame open back press G1-35 low hrs
After reviewing this press we believe that the machine has less than 1,000 of use since new.
(1) Used 35 Ton STAMTEC Gap Frame Open Back Press; Mdl.#: G135; S/N: S80811
Capacity............................................. 35 Ton
Stroke................................................. 2.76"
Shut Height Bed to Slide................... 8.6"
Slide Adjustment.............................. 2.17"
Bed Area........................................... 31" L-R x 14" F-B
Opening in Bed................................. 18" L-R x 10 " F-B
Slide Face Area................................ 14.17" L-R x 9.84" F-B (T-Slotted)
Distance Bed to Floor....................... 28 "
Throat............................................... 8"
Opening through Back...................... 18"
Maximum Die Weight...................... 1080 Lbs.
Speed................................................ 40-120 S.P.M.
Main Drive Motor............................. 5 HP
Electrical Characteristics.................. 240/480 V.A.C.
Single/Continuous Stroke Modes
Overall Dimensions:.................................. 41" L-R x 57" F-B x 98" High
Weight:....................................................... 6,000 Lbs. (est.)
Price:.......................................................... $24,500.00 ......F.O.B...........Casa Grande, Arizona
