Silent knight 5207 fire alarm lite honeywell notifier
This Unit Is Was Pulled From an Active Building Before It Was Demolished

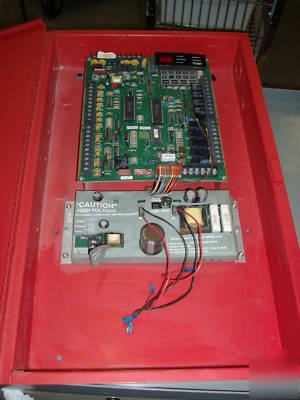

This Unit Has A 5207-M1 Controller Board And A 5197 Power Supply Module

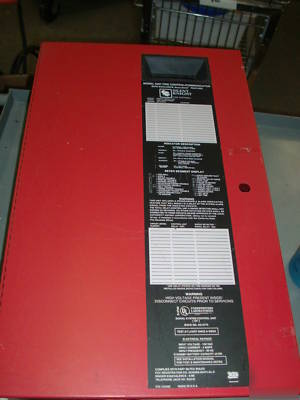

The Case/Box Is In Ok Condition with Light scratches. Some Paint And It Will Look New
Info Found On Silent Knights Website

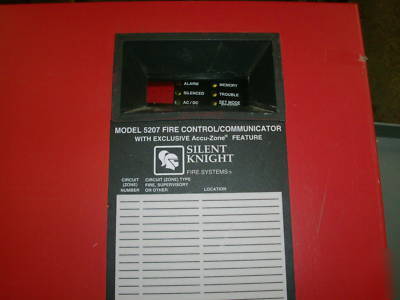

The Model 5207 is an 8-zone fire alarm control panel (expandable up to 16 zones) with a digital
communicator that meets NFPA 72 requirements. The 5207 cabinet can be surface
mounted or semi-flush mounted.
The Model 5207 Fire Control/Communicator Installation Manual (P/N 150865) is intended
for those persons involved with the installation and maintenance of the 5207 panel. It is a
comprehensive guide, providing detailed instructions, and should be kept for reference. As
much as possible, we have tried to organize the manual chronologically by the tasks that need
This manual is intended to be used with printed circuit board (PCB), Revision M. If you are
using a different board, contact Silent Knight Security Systems for the appropriate instructions.
Previous versions of the 5207 were selectable between 12V and 24V. This release is 24V only.
*All information regarding 12V have been removed from this manual.
Some versions of the 5207 product documentation were made up of two manuals, one for
hardware installation and one for programming. We have combined both manuals into one.
With the exception of information about the obsolete 5521 programmer*, this manual contains
all information previously contained in the two manuals.
