E-zrize base kit for all e-zpipe buildings
Our E-ZRize Base system provides a quick and easy way to anchor your arches!

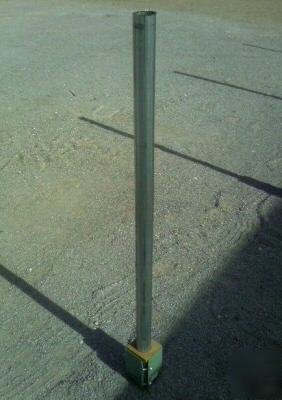

Pictured is the method for a bare ground, no-concrete method. Simply drive the anchors we provide into the ground, add the special bushing, insert your riser (either in 2' or 4' lengths), and tighten the bolts!
We also have an E-ZRize system for pre-existing concrete or wood floors which has risers of 2' or 4' lengths welded to 6"x6" predrilled 1/4" steel plates.
Either of these optional E-ZRize systems cost $50 per arch and comes complete with the anchor stake, special bushing and our standard 2' risers. For extended 4' risers add $25 per arch.
Each E-ZPipe building skeleton kit includes standard 2' risers for installation in concrete footings at no charge. But if you want a quick, no-concrete-footing method to put up your E-ZPipe building on bare ground, the E-ZRize system is for you! Plus, the standard 2' E-ZRize system will automatically add a foot to your total building height since all of the riser is above ground level, while half of the riser is below ground level in the normal concrete footing for the non E-ZRize system.
To calculate how much your 2' E-ZRize option will add, take the number of arches for the length of your building listed below and multiply by $50. For 4' E-ZRize option multiply the number of arches in your building by $75.
Building Length (Feet) / Number of Arches (5' Centers) / Arches for Snow Country (2.5' Centers)
