> Bakers bco-E1 convection oven, full size, electric, sin

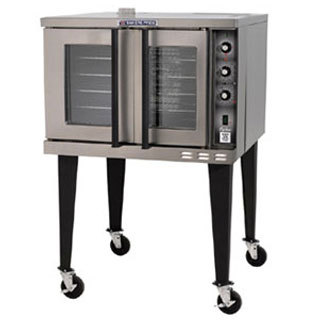

Bakers bco-E1 convection oven, full size, electric, sin
Convection Oven, Full Size, Electric, Single Deck, Cyclone Series
Cyclone Convection Oven, full-size, elec., single deck, rotary controls, 60 min. timer, 2-speed motor, s/s independent doors w/double pane thermal glass, (5) racks w/11 positions, s/s top, front & sides, 31-3/8" painted legs, 10.5kw
* Door interlock switch automatically turns the fan and heating elements off when the right oven door is open. A manual rotary switch will turn the fan on when the door is open for quick cool-down. The 60 minute timer has a continuous ring alarm with manual shut-off. The indicator light glows when the heating elements are on
* The oven interior measures 29" wide (737mm) by 20" high (508mm) by 22 1/4" deep (567mm). The cooking chamber is porcelain enamel over heavy gauge steel with removable 11 position rack guides with 1 5/8" spacing (41mm) and 5 heavy-duty adjustable chrome-plated racks
* The oven exterior measures 38 1/8" wide (968mm) by 38" deep without handles (963mm) and 41 15/16" deep with handles (1065mm) by 26 7/8" (683mm) high. Front, top, sides and trim are constructed with stainless steel. Single oven legs are 31 3/8" tall (797mm) with casters and 27 5/8 (702mm) with adjustable bullet feet and finished with Durable Black Powder Coating
* Dual doors are 60/40 split-type with double-pane thermal glass, independent operation, stainless steel seals and double mounted "Cool Touch" handles. Doors are fabricated with stainless steel inside-and-out, and fully insulated with 2" of industrial grade
* Energy efficient 10.5 KW oven direct forced air heat system
* 150 degree F (65 degree C) to 550 degree F (288 degree C) temperature range
* Elements-on and temperature-ready indicator lights
* Porcelain enamel oven interior with cove corners
* Depth: 38" (without handles)
