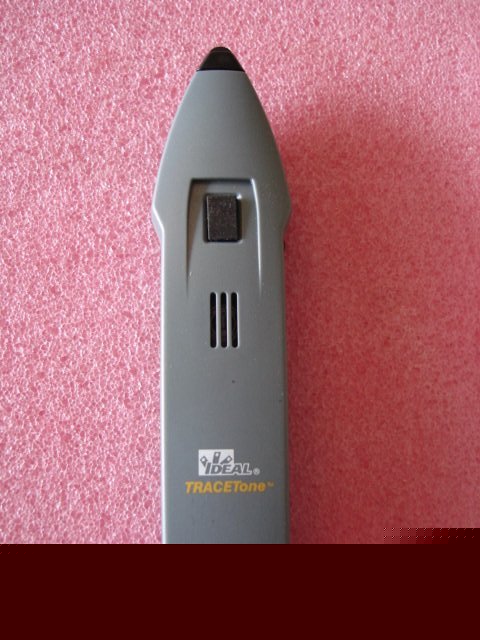

ideal traceone tone generator
Part has been acquired as an overstock inventory sale
Unit does not have any additional hardware.
Tone Generator stores in bottom of Amplified Probe to make carrying easier
Two selectable tone styles with easy to read LED power-on indicator
Built-in volume control to meet personal preference
Turn-on the Amplified Probe by contact and automatic power off mode when Tone Generator is in the stowed mode no dead battery
Accessories to isolate tracing RJ11 Patchcord and Alligator Clip
Instructions for Use To Trace a Tone
1) Connect the Tone Generator to the RJ11 Alligator Clip, then place the Alligator Clip on the cable to be traced
2) Select one of the tones of choice, the green LED will indicate the power-on mode
3) Press and hold the black button on the Amplified Probe to turn on the probe.
4) Adjust volume control to a comfortable level. If the signal is very loud when near the cable, the volume may need to be reduced to keep from overloading the TRACETone . When overloaded, small increases or decreases in the signal at the tip cannot be heard.
5) Hold the tip of the TRACETone near cable to be identified. The signal will be loudest on the wire or cable the generator is attached to. Separating the wires or cables may help in isolating the correct cable. Product specification Power Requirements: 4 x LR44 button cells (6 volts) Battery life: Generator: 100hrs, Amplified probe: 12hrs Externally applied voltage w/o damage: 250 volts peak DC or 175 volts RMS AC Tone frequencies (+/-5%): 995Hz and 845Hz alternating tones Tone voltage: 12 volts p-p no load, new battery Tone power: 8dbm into 600 ohms, new battery
