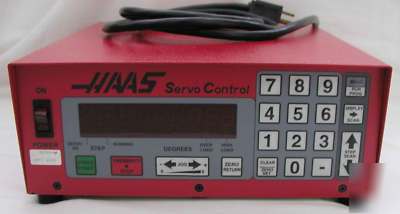

HAAS SERVO CONTROL FOR ROTARY TABLE #SC01M NEW!
Brand new unit, never been used. Includes the SCO1M unit, cable & manual.
At the heart of all Haas rotary products is the Haas Servo Control. Refined by more than two decades of development, it offers the utmost in versatility, coupled with fast, easy, flexible programming.
Haas exclusive software replaces failure-prone mechanical components, and includes a self-diagnostic subroutine that maximizes uptime. A single circuit board controls all main functions.
When used with any CNC machining center, the control performs as a semi-4th axis, activated by a single M code. Easy interfacing, fast set up and low cost make Haas the perfect alternative to cumbersome, high-priced, offshore 4th-axis machines.
Using the control s standard features, odd-number bolt circles and uneven hole spacing are easily performed with simple programming.
You can program the control to rotate the spindle in either direction, in step sizes from 0.001 to 999.999 . There can be up to 99 different steps in memory, and each step can be repeated (or looped) up to 999 times. The memory is non-volatile, so programs are fully retained, even when the power is turned off. You may store up to 10 separate programs.
You can easily achieve three times the performance of a manual device with a Haas control operating the rotary table of your choice.
Fast, easy, flexible programming
Simple CNC interfacing via M code
Linear, arc & spiral milling
High accuracy & repeatability
Absolute or incremental programming
Operates on 110 to 120 VAC power
11.12/282.5 4.94/125.5 0.62/15.8
