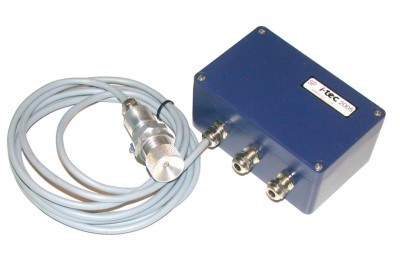

New brand i-tec temp. measuring sensor model #2005
BRAND NEW I-TEC TEMP. MEASURING SENSOR MODEL #2005
This is a brand new in the box sensor and it is fully guaranteed.
Temperature Range - 0-100deg C, 0-200deg C, 0-250deg C, 0-400deg C, 0-500deg C.
Accuracy - +1% of the temperature range
Acceptable Ambient Temp./ Sensor - 0 to 50deg C
Acceotable Ambient Temp./ Unit - 0 to 60deg C
Power Supply - 24 VDC or 230 VAC
Dimentions/ Housing - W= 120mm, H=80mm, D=60mm
Dimentions/ Sensor - L=65mm, O=22mm(40mm with protective jacket)
Output - 0-20mA, 4-20mA or 0-10 V
http://www.sensor.nl/_download/SPitec2005_eng.pdf
