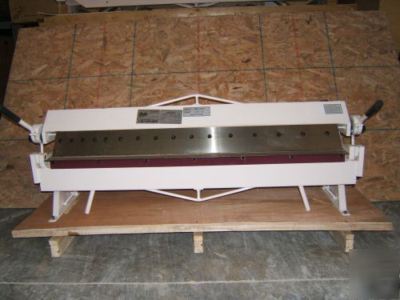

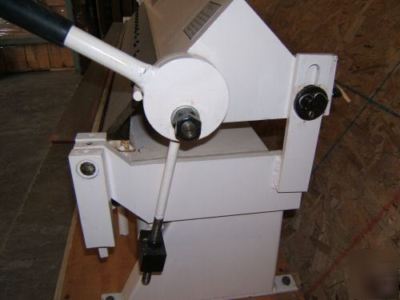

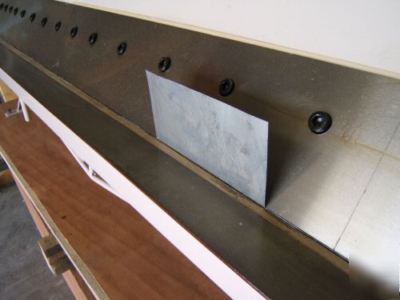

New 48 inch 16 gauge box pan sheet metal brake autobody
If you need to bend sheet metal straight and fast, you need this brake. Our model IBP4816 is made in China. It works great for BENDING 16 gauge sheet metal, smooth, straight, fast and easy. This brake is made for anybody that wants a nice box and pan brake. Put this in your shop and start saving time and do a better job.
* BENDS mild steel up to 16 gauge=.063"=1.57mm
* BENDS soft alumium up to 14 gauge=.078"=1.98mm
* BENDS stainless up to 22 gauge=.031"=.79mm
* 1/2 inch minimum reverse bend
* 2 inch removable apron support
* adjustable radius/setback 0 - 1/4 inch
* movable and removable fingers
* bending length 0-48 inches
* overall size is 60 inches long, 12 inches deep, 18 inches tall
