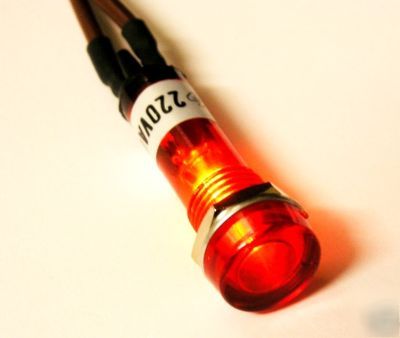

Neon indicator mains voltage panel mounted 150MM leads
Orders received before 3pm are sent out the same day First Class
Postage for extra units is free
If you are looking for a red panel mounted neon indicator these are ideal.
They are supplied with 150mm of cable and the clamping nut and washer.
The panel size hole should be between 10mm to 10.5mm max
The front bezel is 12.5mm diameter and pertrudes 4mm.
The maximum clamping panel thickness 6.5mm
The overall length is approx 47mm + cables
Operating voltage 200 to 250Vac.
