Stereo audio power amplifier 2 x 20W TA8210 ah - kit
Bulgarian post not working from 2 April to 5 April 2010.
This laudio frequency amplifier has been designed using one integrated circuit TA8210AH (KIA6210).
This step has the following parameters:
- Output: 2x20W Ucc=14.4V and RL=4 OM
- Frequency band: 20 to 22000 Hz.
- Supply voltage: 8 to 16V DC (Power supply can car battery 12V).
To avoid any failure, connect the integrated circuits to a dissipating heatsink (heatsink not included)!!!
Overall dimensions PCB 60x40mm (2.337"x1.537").
13. Circuit and wiring diagrams

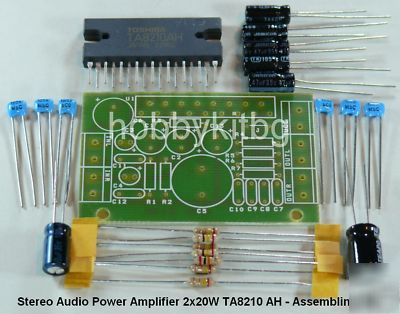

This item Assembling kit (NOT ready built). Look pictures !!!
This kit requires assembly and soldering !!!
- 1x Stereo Audio Power Amplifier 2x20W TA8210 AH - Assembling kit.
