Mitel SP8714 2100MHZ multi-modulus divider, soic-8

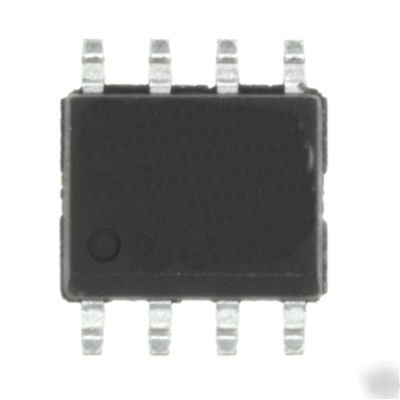

You are one piece of New MITEK Semiconductor/ZARLINK Semiconductor 2100MHz Very Low Current Multi-Modulus Divider. Part Nubmer: SP8714 in SO-8 Package.
The SP8714 is a switchable divide by 32/33, 64/65 programmable divider which is guaranteed to operate up to 2100MHz. It will operate from a supply of 2.7V to 5.25V and requires typically 6.8mA (including the output current). It also features a power down facility for battery economy. The RF inputs are internally biased and should be capacitively coupled to the signal source. The output is designed to interface with CMOS synthesisers.
* Operating Frequency: to 2100MHz
* Divider Ratio: Switchable 32/33/64/65
* Operating Voltage: 2.7V to 5.25V
http://pdf1.alldatasheet.com/datasheet-pdf/view/77223/MITEL/SP8714.html
http://pdf1.alldatasheet.com/datasheet-pdf/view/172726/ZARLINK/SP8714.html
