Keithley 263 calibrator & source
Keithley 263 Calibrator & Source
The Keithley 263 provides power and portability with Keithley's well earned reputation for ultimate accuracy. No other instrument delivers this combination of size and accuracy. The Keithley 263 features outstanding reliability and accuracy for field and laboratory application requiring high performance at low cost.

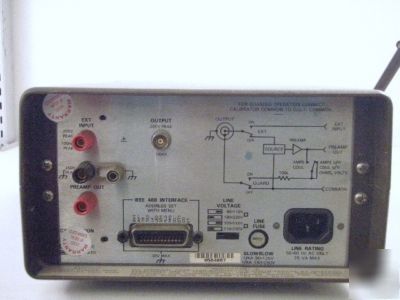

Has a built in IEEE-488 GPIB interface buss built in. Uses a two lug triax connector on the rear panel for output. Adapters may be need for your application.
* Resistance from 1 kohm to 100 Gigaohms
* DC voltage from 0 to 20 volts
* DC Current from 0 to 20 milliamps
* DC charge from 0 to 20 microcoulumbs
* Temperature compensation for the high resistance ranges
