Hp J2300C wan internet advisor (reduced )

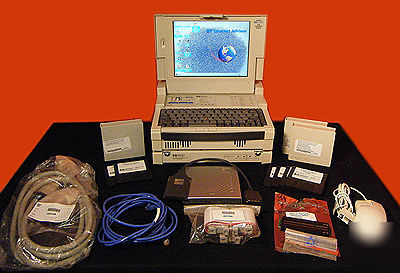

HP J2300C Internet Advisor WAN PC w/J3444A and Accessories
HP Internet Advisor WAN offers integrated WAN and LAN over WAN protocol analysis capabilities, along with bit error rate testing, stimulus and response measurements, and statistical analysis capability. The J2300C captures every frame on your network. It non-intrusively monitors and decodes WAN and LAN over WAN data at full line speed, without missing a bit. In addition, it can simulate either direction of a line under test, and process previously captured data from the buffer or from a file. Analyzes Frame Relay, ISDN, X.25, SMDS, LAN over WAN, PPP, legacy WAN networks.
* Complete protocol analysis for WAN testing with a powerfull and rugged personal computer.
* Monitor all major WAN communication protocols from 50 b/s to 2 Mbps
* Protocols: frame relay, ISDN, X.25, HDLC, SDLC, SNA, async PPP and encapsulated LAN protocols running over the wide area network

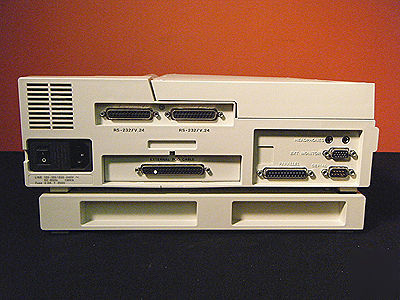

* All major WAN interfaces built in: RS-232C / V.24, RS-449 / 422 / 423, V.10/V.11 and V.35

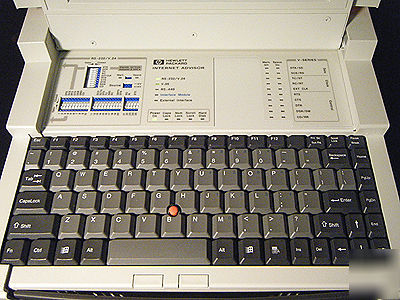

* Full RS-232C/V.24 Breakout Box
* Data Rates for All Monitoring Simulation and BERT: any speed from 50 b/s to 2.048 Mb/s
* Data Analysis Memory: 768 KB capture buffer, 128 KB nonvolatile RAM and 1.44 MB floppy. In addition, circular store data to hard disk
* Extensive Data Filtering Capability
* Full Function Bit Error Rate Tests
* Bit Error Rate Testing (BERT): simultaneously measure bit errors; block errors, errored seconds, and G.821 results; available time, errored seconds, degraded minutes, severely errored seconds, and unavailable time
* Prewritten tests for major protocols including LAN traffic over WAN
* Full Pentium Personal Computer with Window 95
1.44 Mbyte floppy disk, pointing device, serial & parallel ports
Two PC card (Type I/II) slots for modem or NIC (network interface card)

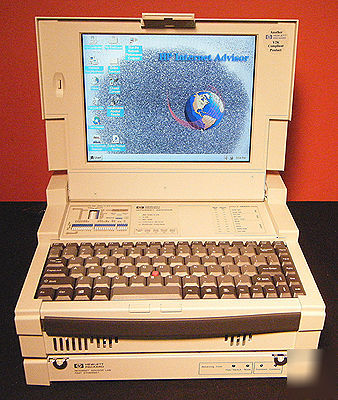

640 x 480 VGA 10.4" color active matrix display
* Windows 95 Operating System

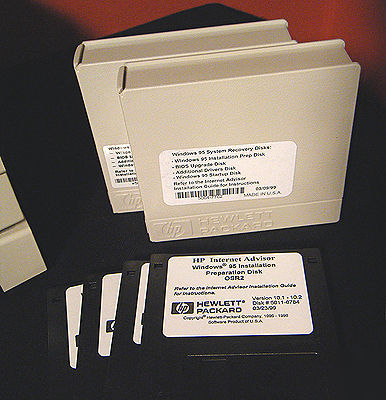

(2) Sets of: Windows 95 System Recovery Disks
-Windows 95 Installation Prep Disk
(1) Set of: Windows 98 System recovery Disks
-Windows 98 Installation Disk

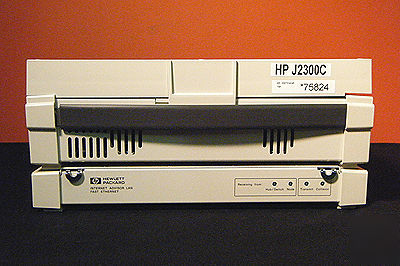

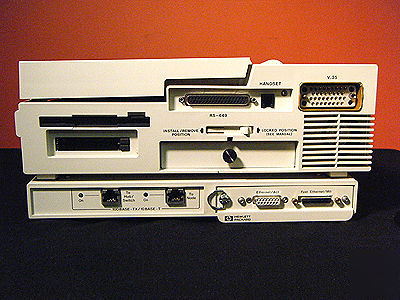

(1) J3444A LAN Advisor Undercradle
Attaches to the HP J2300C WAN Advisor to provide complete LAN/WAN/ATM performance analysis under one handle
* (1) Microsoft Serial Mouse
* (1) J2276A Cable assembly, RS-449 consists of three 37-pin D-subminature connectors and housings on a (1.5m / 5 foot) 37 conductor ribbon cable.
* (1) J2274A V.35 interface Y-cable, (1.2m / 4 feet) 34 conductor with straight through pinning.
* (1) J2295-66502 Transition Board J230X
* (1) External PORT PCMCIA Cd-Rom Drive with PCMCIA port Cable

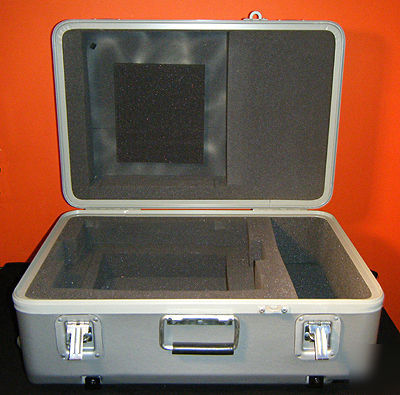

* (1) Gray Carrying Case with Wheels and Handle
