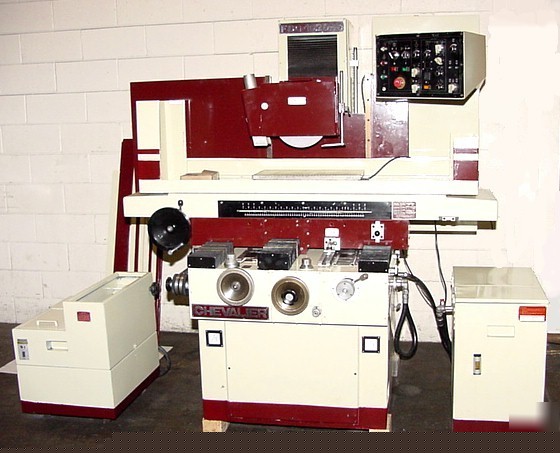

Chevalier fsg-1020AD 3 axis automatic surface grinder
CHEVALIER FSG-1020AD 3 AXIS AUTOMATIC SURFACE GRINDER
10" X 20" CHEVALIER PRECISION SURFACE GRINDER
W/PROGRAMMABLE AUTOMATIC INCREMENTAL DOWNFEED
MODEL: FSG-1020AD S/N: 25069 NEW: 1989
MAX. GRINDING CAPACITY ....................... 10" X 20"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ........... 21"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL .............. 22"
MAX. CROSSFEED TRAVEL, AUTOMATIC .................... 11"
MAX. CROSSFEED TRAVEL, MANUAL .................. 11- 1/8"
DIST. FROM SPINDLE CENTER TO TABLE .................. 21"
VARIABLE TABLE SPEED, HYDRAULIC .......... 16' TO 98' FPM
AUTOMATIC CROSSFEED INCREMENT ............. 0.02" TO 1/2"
CROSSFEED HANDWHEEL, PER GRADUATION ............. 0.0025"
PER REVOLUTION .................................... 0.25"
MICROFEED, PER REVOLUTION ........................ 0.005"
PER GRADUATION ................................. 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED ........ 0.00005" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ............... 0.0005"
PER REVOLUTION .................................... 0.05"
MICROFEED ............................... 0.00005"/.0001"
RAPID TRAVERSE RATE .............................. 8" IPM
SPINDLE MOTOR ...................................... 3 HP
STANDARD GRINDING WHEEL ........................ 12" DIA.
APPROX. WEIGHT ............................... 4,850 LBS.
APPROX. DIMENSIONS ...................... 85" X 48 X 65"H
FULLY PROGRAMMABLE MICROPROCESSOR AUTO-CYCLE
AUTOMATIC INCREMENTAL DOWNFEED (PLUNGE & SURFACE)
SPARKOUT CYCLE W/AUTOMATIC WHEELHEAD RETRACTION
ELECTRONIC CROSS & VERTICAL FEEDS
TABLE RIDES ON HARDENED WAYS W/LINEAR NEEDLE BEARINGS
TABLE, SADDLE & VERTICAL AXES RIDE ON HARDENED & GROUND
DOUBLE VEE GUIDE-WAYS W/LINEAR NEEDLE ROLLER BEARINGS
FINE FEEDS FOR CROSS & VERTICAL AXES (.00005" GRAD.)
10" X 20" "KANETSU" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL ON THE MACHINE'S
3 H.P SUPER-PRECISION DIRECT DRIVE SPINDLE
MACHINE IS PRESENTLY WIRED FOR 3/60/220 VOLT OPERATION
