60" skid steer grapple/root rake for bobcat, cat, etc.

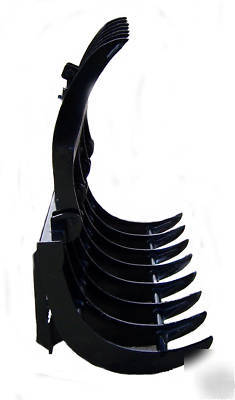

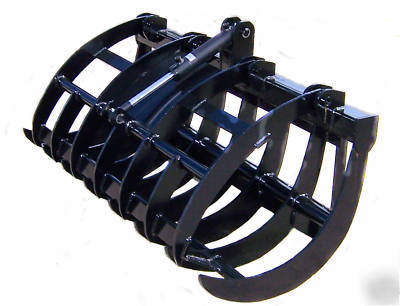

NEW 60" SKID STEER GRAPPLE/ROOT RAKE
This is a new skid steer style rake designed to fit ASV, BOBCAT, CATERPILLAR, JOHN DEERE, NEW HOLLAND and other skid steer machines with the universal attachment plates.
We also manufacture this rake to fit the 200, 300, and 400 series John Deere farm utility tractor loaders with the quick detach hook up.

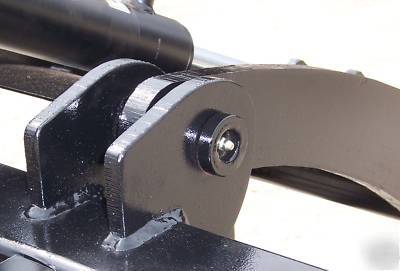

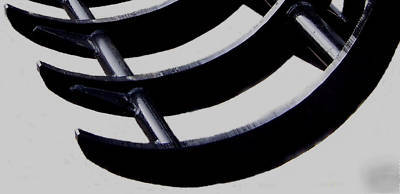

We run two sections of heavy wall tubing THROUGH each of the teeth, (not butt welded like some rakes) and then we weld the tubing 360 degrees on each side of the teeth. We reinforce that with gussets on each side of the teeth and then weld the gussets solid, top and bottom. Our single top grapple is 48" wide and we use 1/2" teeth there also. We use one 2500lb (WELDED, not tie rod) hydraulic cylinder to provide all the clamping power that you need. We have a bottom cylinder protection plate to prevent debris from damaging the hydraulic cylinder. All of our pivot points are pins and bushings with recessed grease fittings to provide smooth operation and long life.
Thanks for looking and may God richly bless you, as he has me.
