> 16" x 20" marvel horizontal band saw #24237
16" x 20" marvel horizontal band saw #24237

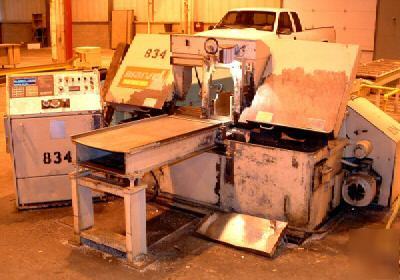

16" X 20" MARVEL HORIZONTAL BAND SAW
New 1985, Serial No F151880PC-W, Model 15APC/M8/M10
10' Automatic-Driven Stock-Feed Table
(2) Moveable Hydraulic Stock-Feeding
Powered Chip Conveyor (Auger Type)
Flat Stock Capacity, Maximum............. 16" x 20"
Shuttle Feed Range, One Index............ 1/16" To 24"
Band Length.............................. 15'6"
Band Width............................... 1.5"
Band Thickness........................... .050"
Blade Speeds, Infinitely Variable........ 55 To 400 FPM
Load Capacity, Maximum................... 14000 LBS
Feed Force, Infinitely Variable.......... 0 To 400 LBS
Blade Motor, Horsepower.................. 10 HP
Hydraulic Motor, Horsepower.............. 3 HP
Overall Dimensions, W X D................ 12'2" x 15'9"
Overall Height........................... 8'
Weight, Approximately.................... 7500 LBS
NOTE: Machine Appears To Be In Good Condition With
A Repacement Price Of Over $58,000.00.
