> Dayton right angle speed reducer 26 - 1 gear ratio used
Dayton right angle speed reducer 26 - 1 gear ratio used

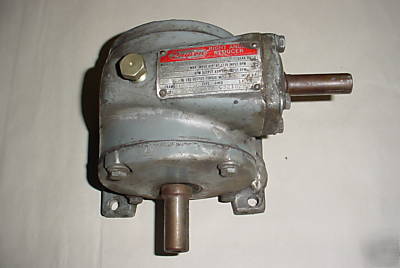

This speed reducer (aka gear reducer) unit has been used in a rotary table for circular/pipe welding applications. Not a whole lot of stress and wear since the welded parts rotated freely without friction. 26 to 1 gear ratio means 1725 RPM input = 67 RPM output. We used a gear motor to slow it down even more for welding. Unit is is in fair condition. Does not leak gear oil. It was dropped a while back and one of the mounting tab ears broke off (click on photos below to enlarge). We welded it back and ground the surface. It has worked fine since.
Link to WW Grainger Product Page
Output Torque @ 1/8 HP (In.-Lb.)
Output Torque @ 1/4 HP (In.-Lb.)
Output Torque @ 1/3 HP (In.-Lb.)
Output Torque @ 1/2 HP (In.-Lb.)
Output Torque @ 3/4 HP (In.-Lb.)
