Agilent (hp) 8762F coaxial switch 4GHZ 75OHM opt 11

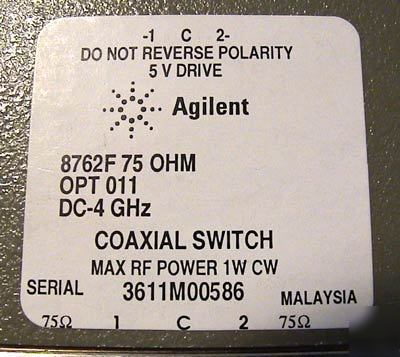

Agilent (HP) 8762F Coaxial Switch
The Agilent (HP) 8762F brings a new standard of performance to 75-ohm coaxial components. Designed for ATE switching systems, the Agilent (HP) 8762F offers the performance demanded by the cable television distribution equipment and communications equipment industries. It gives the ATE system designer of telecommunications and cable distribution equipment the tools to design reliable, high performance switching interfaces. The Agilent (HP) 8762F uses a mini 75-ohm SMB connector for the coaxial interface. The mini 75-ohm SMB connector is designed to terminate RG-179 75-ohm coaxial cable. This Agilent (HP) 8762F is designed to work with systems using 5 Vdc. This switch has the standard configuration solder terminals.
Maximum power rating - 1 watt average & 100 watt peak (Not to exceed average power rating)
Option 011 = 5 Volt Nominal Switch Voltage
Terminated single pole double throw switch has internal 50-ohm terminations
Current interrupts and position indication capability
http://cp.literature.Agilent (HP).com/litweb/pdf/5964-3704E.pdf
