3.0M usb pc camera, 3.5-90X stereo boom microscope+lite

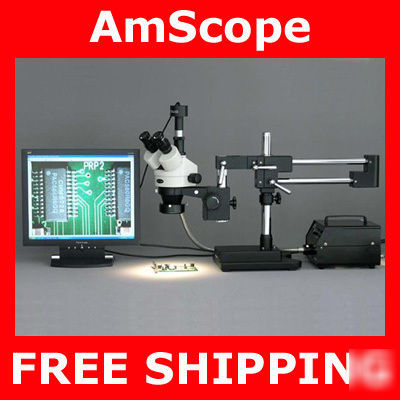

This is a turnkey package with a stereo inspection microscope and digital image system. It includes a trinocular 3.5-90X zoom microscope, a 150-Watt fiber optic ring illuminator, and a 3.0 Mega pixel high resolution USB digital camera. It gives sharp, crystal clear images with high resolution. It is a complete inspection system for industry applications. The digital camera captures microscope images and displays full-screen live video on your computer. It is of 3.0 Mega pixel resolution and is compatible with Windows 2000/XP/VISTA. It has a built-in reduction lens and gives the same field of view on your PC screen as that seen through the eyepieces. With the user-friendly software included, you can edit microscope images, conduct measurements across the images, record videos, email images or save them as BMP, TIFF, JPG, PICT, PTL or other files. You can measure distances, angles, areas and etc. The zoom microscope is on a versatile double-arm boom stand that allows you to turn the microscope head around three different axis (x, y, and z), allowing you to point the microscope head toward to ANY direction. This microscope comes with two pairs of 30mm super widefield, high-eyepoint eyepieces (10X & 20X) and a 0.5X Barlow lens. It offers extremely large zoom magnification range (26:1) and large working distance (8"). The ring illuminator includes a 35"-long metal-sheathed fiber optic cable and a 150Watt halogen light source with intensity-adjustable controls. It provides even, cool and bright illumination. This package is an ideal instrument for research labs, gemologists and anyone in semiconductor or electronic industry. This microscope is brand new in factory sealed box.
Brand Name: AmScope Model No: SM-4TZ-FOR-3MB Retail Value: $4,000
* A great microscopy turnkey package with color digital image system.
* Trinocular zoom microscope with high quality super widefield of view.
* Capturing microscope images and displaying real-time video on your PC screen.
* Showing full-screen live video images.
* Saving microscope images as BMP, TIFF, JPG, PICT, PTL or other files.
* Editing, saving and emailing microscope images.
* Conducting measurement across microscope images.
* Measuring distances, angles, areas and etc.
* 3.0 Mega (1280x1024) pixel high resolution full-screen images.
* User-friendly software compatible with 2000/XP/VISTA.
* Built-in reduction lens giving the same field of view images on your PC screen as those seen through eyepieces.
* Easy USB2.0 connection, installation and operation.
* 3.5x-90x extremely large zoom magnification range.
* Versatile double-arm boom stand covering large working area.
* 45 inclined trinocular head with SUPER widefield high-eyepoint eyepieces.
* SUPER widefield 30mm WF10X/20 eyepieces (10X power and 20mm field of view - see the difference in the above picture).
* High resolution optical system with great flatness and contrast.
* Erect stereo sharp images over a wide field of view.
* Accurate alignment ensuring a fatigue-free long time viewing.
* Extremely large working distance up to 8" (200mm).
* Sturdy cast steel boom stand finished with stain-resistant enamel.
* 150W variable-intensity fiber optic light source.
* High intensity 21V,150W halogen bulb.
* Perfect even Quartz halogen illumination without heating.
* Forced air cooling system.
* 3200 degrees Kelvin lamp color temperature.
* Fiber Optic Light Source: 110V (220V version available) power supply; 21V/150W halogen
* One 3.0MP Microscope Digital Image System with Software
* One Fiber Optic Ring Illuminator
