> New white usb/ RS232 MS9520 voyagercg w/ stand+ warnty

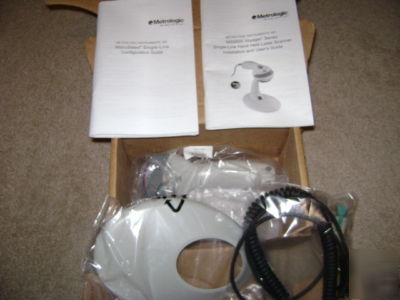

New white usb/ RS232 MS9520 voyagercg w/ stand+ warnty
New MS9520 VoyagerCG, USB/RS232
* Designed for USB / RS232 connection
http://en.wikipedia.org/wiki/Power_USB
For the last manuals and software, please visit the following manufacture web site directly!!
* Product Retirement Notice
Metrologic MS 9520 Voyager Scanners - 5 Year Warranty!
Ahead of its time. Perhaps the best automatic trigger scanner available today.
With a futuristic design and high-performance scanning technology the MS 9520 Voyager is clearly the most advanced auto-triggered scanner on the market today. Enabled for both In-stand and Out-of-stand operation Voyager can be used as a handheld and fixed presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. The MS 9520 Voyager Voyager is perfect for many applications including point-of-sale inventory control and commercial-warehouse applications. With its aggressive performance and comfortable design Voyager is far and away the most advanced scanner on the market today.
MS9520 Voyager Series Technical Specifications
Visible Laser Diode 650 nm 10 nm
Green = ready to scan; Red = good read; Yellow = automatic scanning
USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
198 mm x 78 mm x 56 mm (7.8 x 3.1 x 2.2 )
Class 1: IEC60825-1, EN60825-1
FCC Part 15, ICES-003, EN55022 Class B
-40 C to 60 C (-40 F to 140 F)
5% to 95% relative humidity, non-condensing
Designed to withstand 1.5 m (5 ) drops
Sealed to resist airborne particulate contaminents
35% minimum reflectance difference
Reads standard 1D and GS1 DataBar symbologies. PDF417 reading available in MS9524 only.
Visit /aidc/symbologies for details.
