> K&l rf microwave bandpass filter 7.800 ghz, 40 mhz data
K&l rf microwave bandpass filter 7.800 ghz, 40 mhz data

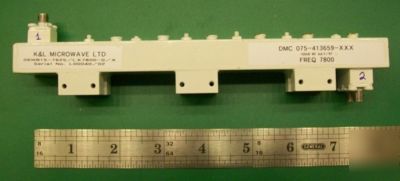

7800MHz center, 40MHz bandwidth, 2.2dB insertion loss (measured) with a coupling port.
Same specifications, 7800MHz, 40MHz bandwidth, 1.6dB insertion loss without a coupling port.
Otherwise measured rejection performance is identical.
The measurements provided below are for the 3 port filter.
For the filter that has 3 ports, port1 and port 2 is the main path.
2.2 dB or 1.6dB (without coupling port)
