Esi dekabox DB62 precision resistance box

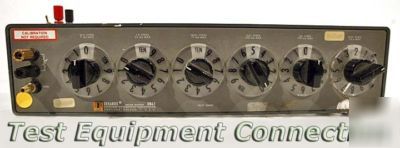

Photobucket DEKABOX in-line Decade Resistors provide six decade switches that allow 1,000,000 resistance values to be dialed. Accuracy over a wide range of ambient conditions is assured by the use of resistors with good temperature and power characteristics. Switches built with multiple contacts of solid silver-alloy ensure excellent repeatability of readings.
The DB62 In-Line Decade Resistors are designed for precision DC and audio frequency use. They feature high accuracy, ease of setting, and repaid, error-free reading. Total of 6-decades, the smallest step provided is 0.01 ohm; the largest total resistance available is slightly greater than 11 Megohm. Resistance values are easily read from the large-numeral in-line presentation above each 6 knobs. Long-term incremental accuracy is excellent, for example- ?0.02% above 1 kohm.
