> Sorenson power supply mdl. SRL40-25

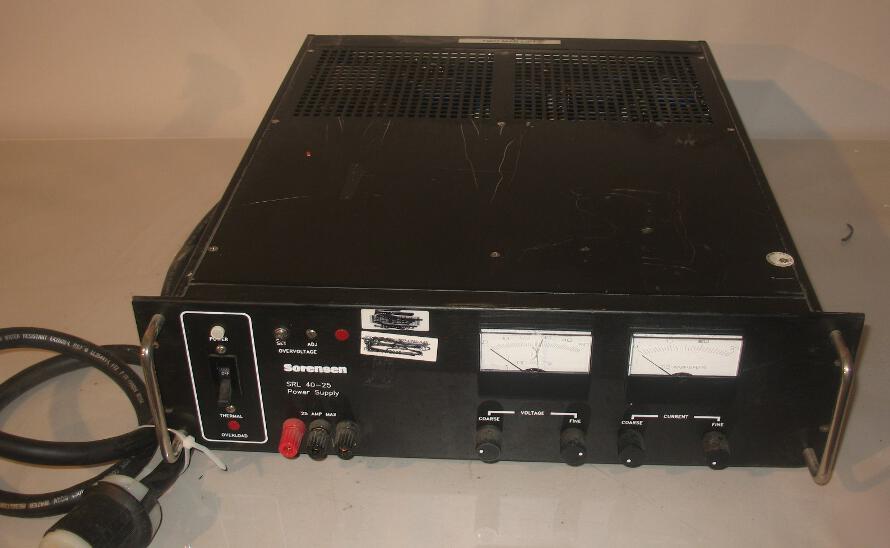

Sorenson power supply mdl. SRL40-25
DC Power Supply, 40 Volts, 25 Amps
* Remote voltage or resistance programming in voltage or current modes
* Excellent voltage or current regulation with automatic crossover
* Unique quick set and check of built-in over-voltage protection can be monitored and adjusted on front panel. Set point can be adjusted without removing load or ac power
* Series Operation: 200 Vdc maximum
* Parallel Operation: Master-slave or straight parallel; 3 units maximum in master slave
* Standard Input Power (single phase, 47-53/57-63 Hz): 105-125 Vac; 22.0 Aac (Max)
