Photo electrical amplifier telco PA11 A302 24VAC sensor

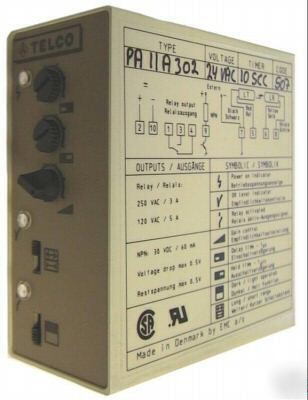

TELCO PA11 A302 24VAC SENSOR PHOTO ELECTRICAL AMPLIFIER
The PA 11 is to be used in with a set of remote transmitter & receiver from the Telco series 100, 110 and 120.
This amplifier offers manual sensitivity adjustment.
Output can be selected from either a relay or NPN with a 0-10 sec on/off time delay.
Light or dark on function and long or short range power setting is switch selectable.
Operation mode and max sensing range:
Manual sensitivity adjustment
Adjustable on/off time delay
1 relay and/or 1 transistor output included
Switch selectable light or dark function
Switch selectable long or short range
Power, output and signal level indicators
