Northern computers n-1000-iv 4 door controller 4 reader
Northern Computers N-1000-IV 4 Door Controller 4 Readers
Northern Computers N-1000-IV Intelligent 4 Door Controller and 4 Proximity Readers OP-10

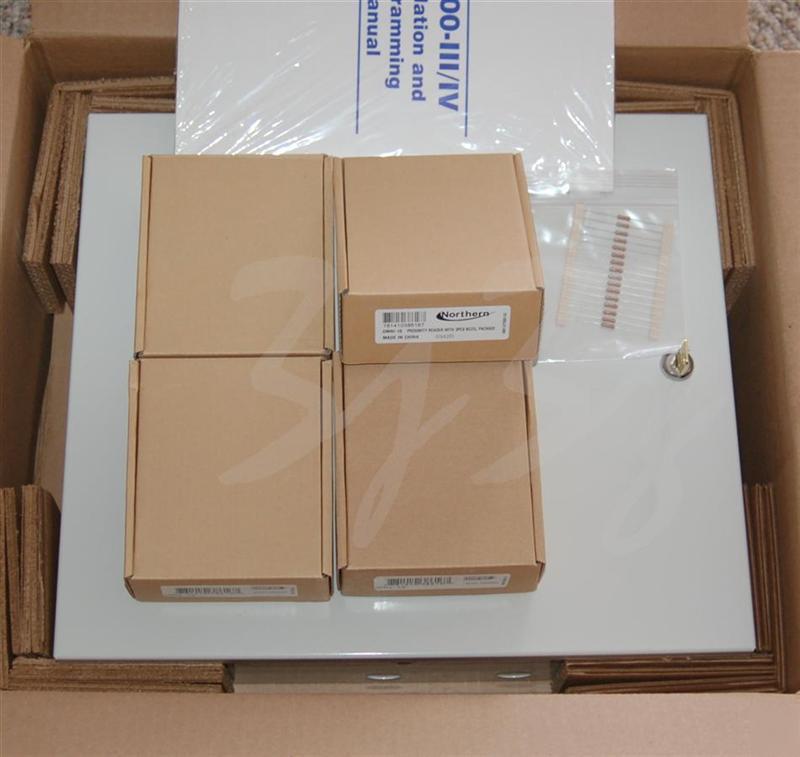

4 reader access control panel. Supports proximity, smart Wiegand, magnetic stripe, keypad, barcode, vehicle ID and biometric devices. 5,000 code capacity, 10,200 buffer capacity, four relays (DPDT), 16 supervised alarm inputs, 20mA or RS-485 communications (RS-485 requires the use of N-485-HUB-2 or N-485-PCI-2 interfaces). Includes 12V battery backup, detachable terminal blocks, locking enclosure with tamper switch. 12V 500mA output for external readers. Requires 16.5VAC transformer (X-4) or 12VDC power supply (HPS123) for panel power and one suppressor kit (S-4) per used (active) relay. Current draw is 1.8A maximum. Use withWIN-PAK software. Dimensions: 14" H x 18" W x 4" D (35.5cm H x 45.6cm W x 10.0cm D). UL 294 and CE listed New in box.
