> New tandler 3:1 metric bevel gear 55MM speed reducer
New tandler 3:1 metric bevel gear 55MM speed reducer

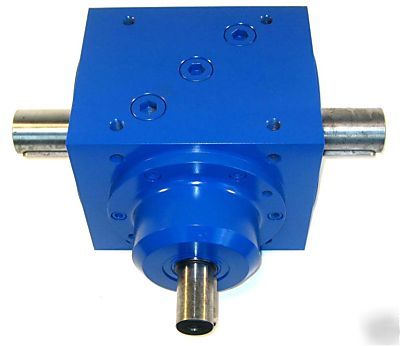

Brand new Tandler number C1-111-3:1 Bevel Gear Speed Reducer. Metric box with a 38mm diameter x 65mm long keyed input shaft. Output shafts measure 55mm in diameter x 85mm long. Box measures 8-1/4" x 8-1/4" x 10-1/4" wide. There is an oil sight glass on the side of the box. Clockwise rotation of the input shaft results in both output shafts turning in the same direction. Output rotation can be reversed by mounting the box on the opposite side. These boxes were unfinished and there are some signs of rust spots on the shafts. Appears exactly as shown in the photos.
Specs and info available here: Tandler PDF File
