> New fluke 712 rtd process calibrator -* * * * - mrp 895
New fluke 712 rtd process calibrator -* * * * - mrp 895

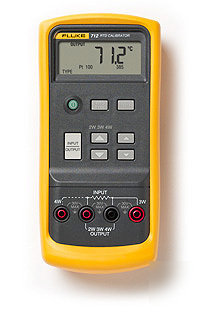

Fluke 712 RTD Process Calibrator
If needed we can Calibrate for an additional $49.99 a $99.99 service
The Fluke 710 Series Process Calibrators offer a clear new choice in single-function calibrators. These hand-held calibrators deliver outstanding performance, durability and reliability. Offered in the rugged Fluke 80 Series DMM package, the calibrators are compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 710s are easy to use. Each calibrator is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.
Each calibrator will measure or source one parameter at a time. Additionally, the 713, 716, 717 and 718 will simultaneously measure pressure and mA. The 715, 716, 717 and 718 will deliver 24 volt loop supply while measuring mA.
The newest members of the 710 family, the 716 717 and 718 Pressure Calibrators present cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. These new calibrators connect with any of the 29 Fluke 700Pxx Pressure Modules to address a wide variety of gage, differential, absolute, vacuum, and dual (compound) pressure applications. The Fluke
716 serves as a readout device for Pressure Modules. Fluke 717 and 718 can address the majority of applications with their internal sensors, or can connect to a Pressure Module to address more varied applications.
* Measure temperature from RTD output
* Operates with seven types of RTDs
* Measure additional RTDs using Ohms measurement function
* Simulate additional RTDs using Ohms source function
* Four shrouded banana jacks
* Compatible with Rosemount pulsed RTD transmitters
Range: -200 to 800 C (Pt 100)
Note: Pt; 100 (***) 500 1000 (385); Pt 100 (392); Pt 100 (392) JIS; Ni 120 (672)
Relative humidity (% RH operating without condensation):
Single 9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
201 mm L x 98mm W x 52 mm D (7.93 in X 3.86 in x 2.06 in)
187 mm L x 87mm W x 32 mm D (7.35 in X 3.41 in x 1.25 in)
Clear, 5 digit liquid crystal
User's Manuals & Other Documentation
712 Instruction Sheet (PDF, 234kB)
Instruction Sheet Supplement
712 Instruction Sheet Supplement (PDF, 35kB)
