New ~brand kreg pneumatic foreman DB55 pocket hole~
Description & Specifications (Back to top)

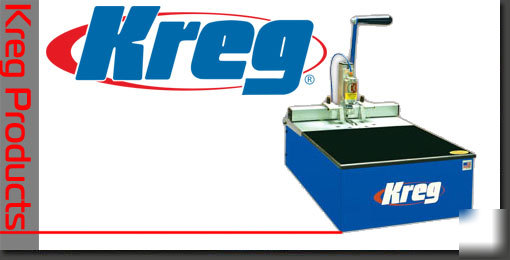

When your production needs have outpaced the manual Kreg Jigs, look for the added speed and convenience of the FOREMAN Pocket Hole Machine. The semi-automatic FOREMAN features a pneumatic drill motor and automatically adjusting air clamping cylinder. To operate, simply position your material to be drilled and pull the lever forward. This motion supplies air to the clamping cylinder that automatically adjusts to your material thickness as well as activates the 3/4 hp drill motor. Finish the drill stroke by continuing to pull on the lever and then return the lever to the home position to cut the air supply.
* Now with automatic oiler for pneumatic motor
* Lever operated, 1 second cycle time
* 3/4 hp pneumatic motor, automatic air clamping
* 90-120 psi recommended - Minimum compressor cap. of 5.3 cfm @ 90 psi
* 1/2" to 1-1/2" material capacity
* 19" H x 13-5/8" W x 22-5/8"D (35 lbs.)
* Fast, semi-automatic operation; automatic "hands-free" clamping, quiet
pneumatic drill motor with lever operated drill stroke.
* Reliable, one-step drilling opeation; drills flat-bottom, round-sided
pocket hole that can be plugged.
* Adjustability to handle 1/2" through 1-1/2" thick material.
* Stable work surface with easily adjustable "swing-stop" material positioning
* Hinged-top that allows easy access to drill bit and motor.
