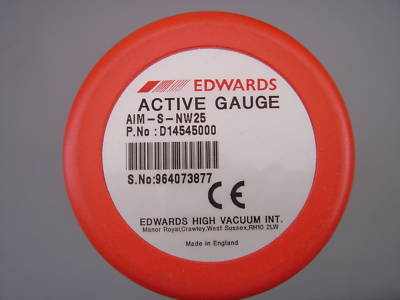

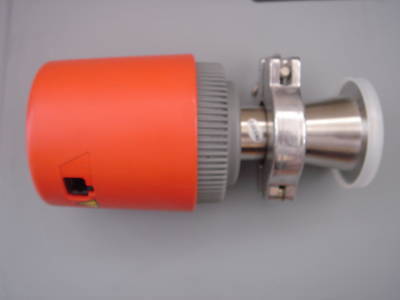

BOC Edwards Active Inverted Magnetron Gauge AIM-S-NW25
AIM-S 10-2 to 10-8 mbar / Torr
Maximum over pressure 10 bar absolute (145 psi)
Power supply +13.5 to +36 V d.c. (max 1 V ripple)
Set point Open collector transistor
NW25 version Stainless steel 304, 306 and 347
Drive electronics combined in the gauge head
Wide-range, regulated, internal power supply
- Runs from standard d.c. power supplies +13.5 to +36 V
- Tolerant to voltage fluctuations
Standard analog output 0 to +10 V d.c. and gauge identifier
- Easy to interface with a computer or plc
Low output impedance and integral Faraday shield
- Provides high level of noise immunity
- Permits long cable runs (up to 100 m)
- Rapid tube replacement without pre-calibration
- Electrode service kit allows user cleaning and maintenance
- The DN40CF tube is bakeable to 300 C (with the electronics
- Ensures rapid striking even at high vacuum or in contaminating
Low external magnetic field versions (SL and XL)
- For sensitive analytical instruments (patented)
