Visual basic hmi for automation direct ethernet plcs

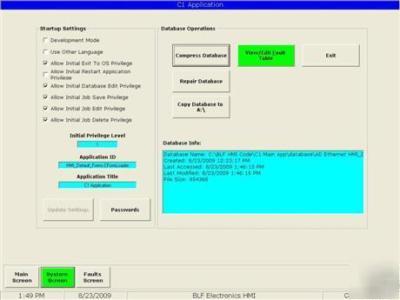

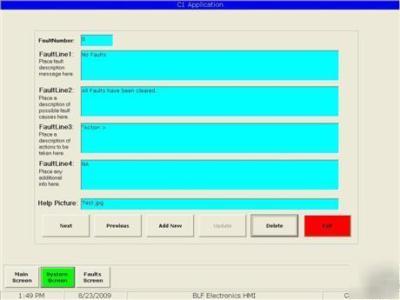

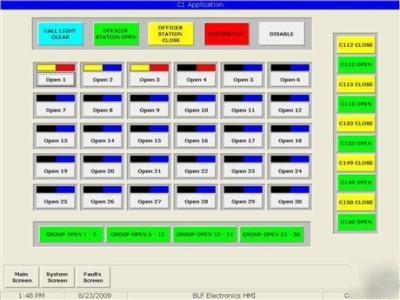

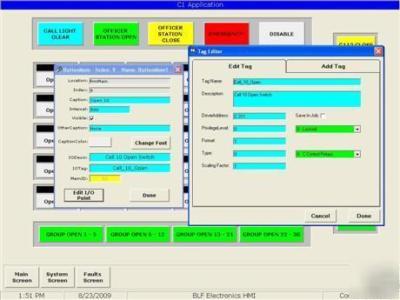

Learn to develop your own HMI (Human Machine Interface) program using Visual Basic 6.0 and save money. If you have purchased HMI software you know how expensive it can be. We can help you by providing a sample program that shows how to read and write data with the Automation Direct PLC via an Ecom Ethernet module, via an ethernet connection. We have designed the back end of the software that communicates to the PLC and created the database to store all the setup information. The sample screens show one screen with buttons and indicators to show how easy it really is to turn bits on and off in the PLC. The other screens show the pre built screens for setup of the fault database and assigning a PLC address to a button on the screen. We will also provide the source code for the screen design module so you can design your own screens or modify the sample we include on the CD. Some of the advantages of our software are listed below.
* Cost Effective - No tag usage fees with unlimited usage.
* You own it - You own the code and can modify it as often as you want.
* 32 bit code - All code is 32 bit and will work with Win98, WinNT, Win 2000, and XP.
* This Automation Direct PLC driver works with:
* DL05/06 via the H0-ECOM Module
* 205 Series including the D2-240, D2-250, D2-250-1 and the D2-260 Processors via the Ethernet Ecom module.
* Please Note: The D2-230 does not work with the Ethernet driver.
* Please Note: The D3 series does not work with the Ethernet driver via an Ecom module.
* 405 Series including the D4-430, D4-440, and the D4-450 Processors via the serial port or Ethernet via an Ecom module.
* Several controls are included that allow you to drag and drop them onto the design screen of the screen design to siplify design.
* You need to understand Visual Basic programming to use this software.
You will receive the sample code that was written using Visual Basic 6.0 and the Automation Direct PLC Ethernet driver. We also provide Visual Basic application design and PLC software design services for other custom projects if required at $65.00 per hour. We have several years experience in the automotive, chemical, fertilizer, and asphalt industries. We would be happy to quote any project requirements you may have.
