Used shock isolation mount for electronic assemblies

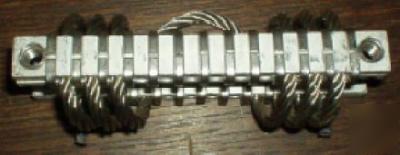

USED Shock Isolation Mount for Electronic Assemblies
These mounts can be used for the following applications:
* Surveillance Equipment/Cameras
* Sensitive Electronic Equipment
I do not have the manufacturer's name for these mounts, but they are likely 'generic' Aeroflex or Enidine. This project was big enough that many parts were produced as OEM specifically for this application. They compare with the Aeroflex C6 (3/16" cable) models, but have fewer coils than standard to create a 'softer' mount. Industrial 'Lift' or 'Fork' trucks are extremely solid and rigid, and transmit shock easily; these mounts have to be very good to accomplish this protection.
These mounts are approximately 4.5" in length, and the mounting/support bars are approximately .5" wide. They are approximately 1.5" tall and overall approximately 1.5" wide. They are mounted by means of a threaded hole at each end of the support bars (4 per mount). These appear to be 1/4-20 or a close metric equivalent. I have several hex-head and phillips/countersunk screws for these, and will include screws until they're all gone.

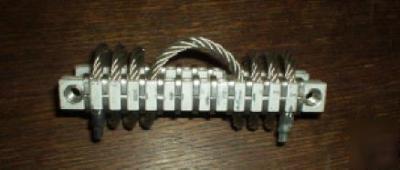

Note: These mounts have the 'reverse helical' design that is considered best for protecting from vibraton in all directions. 'Cheaper' mounts will have the wire rope all wound in the same direction, and require you to use two or more mounts to achieve 360 degree protecton. These mounts individually incorporate both directions of spiral to accomplish this (see picture #2).
