> Ses cpir 360º flush mount ceiling pir presence detector
Ses cpir 360º flush mount ceiling pir presence detector
WE ARE UK BASED AND AIM TO PROVIDE THE BEST QUALITY SERVICE TO YOU
FANTASTIC DESIGNER SWITCHES THAT WILL BE THE TALK OF THE TOWN.

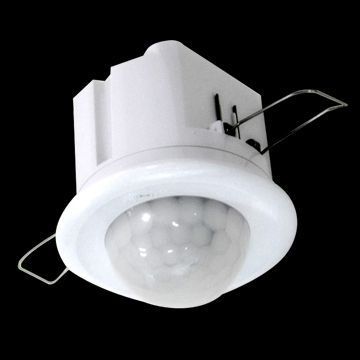

SES CPIR FLUSH MOUNT CEILING PIR PRESENCE DETECTOR
Ceiling PIR Presence Detector with adjustable Time and Lux
* Power source: 220~240V AC 50~60Hz
* Detection distance: 360 , radius 3.2m at an mounting height 3m (<22 )
* Light-control: 3LUX~1000lux (adjustable)
* Time-delay: 10 5sec~15 2min (adjustable)
* Rated load: Maximum 2000W incandescent lamp (resistive load), Maximum 1000W fluorescent lamp (cos =0.5))
* Installation height: 2.5m ~ 5m
* Detection motion speed: 0.6~1.5m/s
* Working temperature: -20~40
Practicality: It can work in various ambient-light day and night, Time-delay can be adjusted by yourselves in stipulated range; infrared detection can be controlled by yourselves.
Good appearance: The surface design is facility, comely but not losing generosity. The style is elegant and it will not have accidented feeling after installed.
Adjusting the Lux control: The Lux control has a built-in photosensitive component that detects daylight and darkness. Turning the control towards the [sun] symbol will result in the unit switching in all light levels. Turning the control towards the [moon] symbol will result in the unit switching only in reduced light. Set the unit to switch at the desired light level using this control.
Adjusting the duration time: The duration time is the length of time for which the load remains energized after the sensor has been triggered. This time can be adjusted from 10 5sec~15 2min. Turning the control from the [+] symbol to the [-] symbol will reduce the duration time.
Good Detection range: SES CPIR is equipped with a semiglobe Fresnel lens which yields a circular detection area of 360 .The size/diameter as well as the sensitivity within the detection area depends on the mounting height of the SES CPIR:
Home, Offices, Conference Rooms, Stairwells, Educational institutes, Hospital and clinics, Factory workshops, Toilets.
