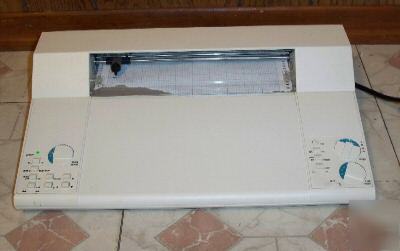

Kipp & zonen BD111 compact flatbed strip chart recorder
COMPACT FLATBED STRIP CHART RECORDER
The BD111 recorder is a compact recorder meeting today s technology. The recorder uses a null balancing potentiometric system. Disposable fiber pens are used, avoiding the inconvenience of a bleeding ink system. The Kipp and Zonen BD111 recorder is for use in research, development or production. IIt has special "home" and "grid" functions which permit recorder pen to be either set back to original inital start of plot (ideal for comparative measurements) or to be moved exactly to next major grid line on the paper.
The recorder transports the chart paper at a constant velocity, which may be as slow as 0.1 mm per minute or as fast as 20 mm per second. The positions of two independent pens represent the levels of the two corresponding inputs of which the time functions are drawn. The full scale input sensitivity range from 1 mV to 20 VDC. The recorder is equipped with one chart drive control panel and with two independent servo system control panels, one for each channel.
0.1, 0.2, 0.5, 1, 2, 5,10, 20 mm/min or mm/sec
25 m rolls, according to DIN 16230
95-135 V or 220-240 V, 50/60 Hz
Fast forward & reverse,grid, home, event marker, polarity reversal switches, external control
Nice shape, coming from a working environment!
