> Agilent E4401B 9KHZ-1.5GHZ spectrum analyzer/OPT1DR A4H
Agilent E4401B 9KHZ-1.5GHZ spectrum analyzer/OPT1DR A4H

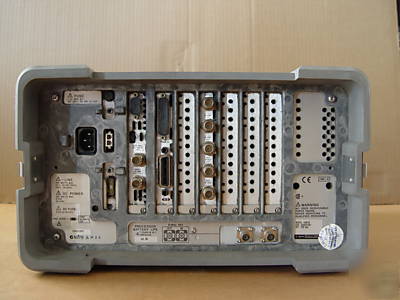

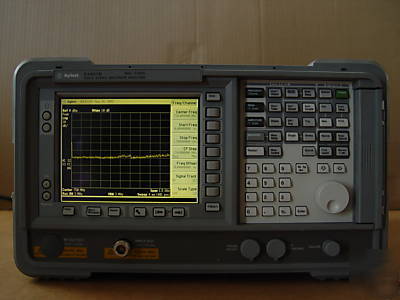

Agilent E4401B 9 kHz-1.5 GHz Spectrum Analyzer/OPT 1DR A4H
Minimum Frequency: 9kHz Maximum Frequency: 1.5GHz Resolution bandwidth: 10Hz The HP ESA-E series of general-purpose, portable spectrum analyzers offer engineers in R&D, manufacturing and field service faster measurement speed than comparably priced products. Engineers will also find that the superior dynamic range, accuracy and resolving power surpass other similarly priced analyzers. This new series, consisting of five models in frequency ranges from 1.5 GHz to 26.5 GHz, can help engineers spend less time testing and more time designing, building and trouble-shooting components and products. These new spectrum analyzers provide 5-millisecond full-span RF sweep time, up to 28 measurements per second and up to 19 when transferred over HP-IB. As a result, you can get virtually real-time results when performing tests. The analyzers also operate with a continuously phase-locked synthesizer that can produce a span accuracy of +/- 1% and frequency accuracy of +/- 111 Hz. The overall amplitude accuracy of +/- 1 dB gives you measurement confidence. Measurement: 28 /sec Remote Measurement: 19 /sec Warm-up Time: 5 Min Measurmt Range: -153 to +30dBm Large,High-resolution colorVGA Max.Sensitivity: -153 dBm +/-1 dB Overall Amplitude Accuracy
1. The item must be returned within 7 days of the date you receive it.
2. Returned item must be in the original condition with all accessories and document if included.
