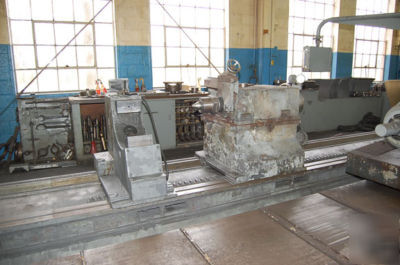

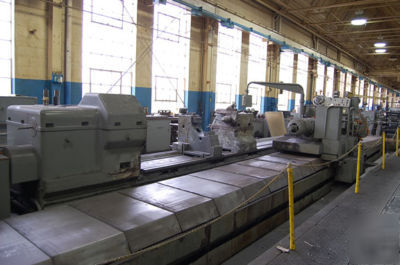

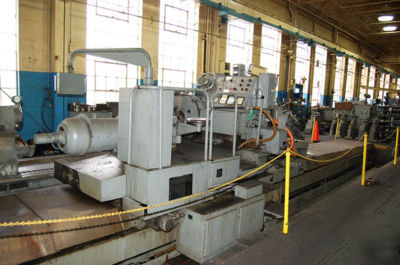

40" x 393" Waldrich Roll Grinder
Maximum Work Diameter ................. 40"
Minimum Work Diameter ................. .75"
Distance Between Centers .............. 393"
Wheel Size (Diameter x Width) ......... 30" x 4"
Wheel Hole Diameter ................... 12"
Workhead Drive Motor .................. 29.48 HP
Headstock Speed Range ................. 10 to 100 RPM
Weight Between Centers ................ 10 Tons
Normal Infeed ......................... 0.0004 - 0.028
Carriage Feed ......................... 2.375 - 118 IPM
Sliding Steel Way Covers on Bed
Barnes Coolant and Filtration System
