4 circuit 3 phase power distribution panel
4 Circuit 3 Phase Power Distribution Panel

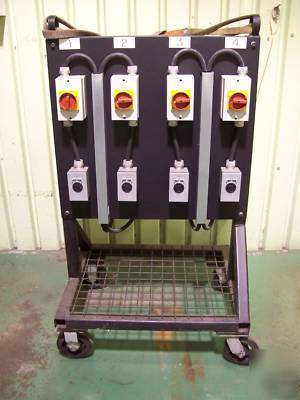

This Panel was built at our shop so we could apply or remove power to an individual machine without affecting the others using the same power source. They worked great and we regretted not building them earlier.

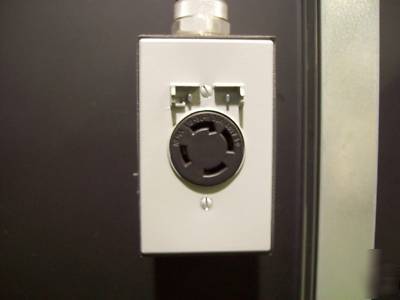

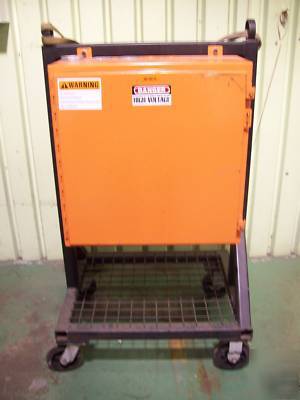

Constructed with quality parts, Hoffman Enclosure, Allen Bradly Disconnects, Leviton Receptacles

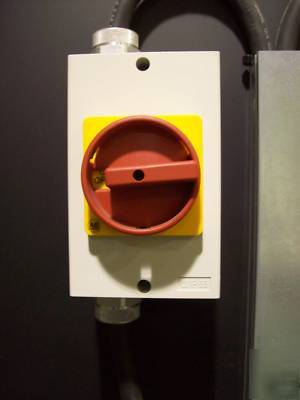

The four disconnects are rated at 32 amps, the receptacles at 30 Amps.

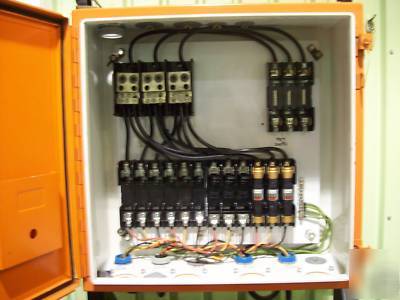

Each of the four circuits are individually fused.
There is a little room left on the inner panel for additional components.

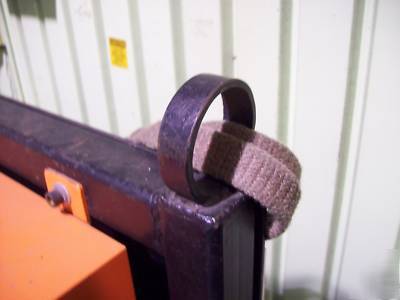

The frame is 2x2 structural steel tube with 2 rings welded on top, making it easy to pic with a crane or fork truck.
It weighs very to three hundred pounds, but rolls very easily.
Arrangements can be made for pick up near the intersection of I-90 and I43 in southern WI.
