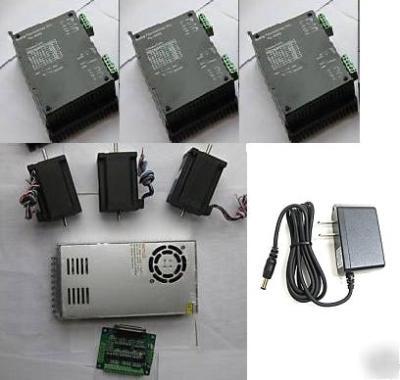

> 3 axis stepper motor cnc router or mill complete kit
3 axis stepper motor cnc router or mill complete kit
Specifications: http://www.kelinginc.net/KLDriver.html
A: 3 PCS KL- 5042 Micro stepping Driver 50 VDC /4.2A
* Voltage up to 24 to 50VDC, current output up to 4.2 A
B: 3 PC NEMA 23 BIPOLAR STEPPER MOTOR 282 oz-in , 1.8 degree, 4 Leads
http://www.kelinginc.net/KL23H276-30-8B.pdf
C: 1 PC 36V/9.6 Switching Power supply, 115/230V input
D:1 PCS 6 axies Breakout board, Optically Isolated , E-Stop or Limit Switch can be wired, KL-DB25
E: 1 PC 5V power supply for breakout board
http://www.kelinginc.net/KL-4030WithC10.pdf
http://www.kelinginc.net/CNCNEMA23Package.html
This system is compatible with ALL CNC software that outputs standard step and direction signals,
such as Mach3, turbo CNC, kcam4, tubocnc. You can download trial versions of the following addresses
