> 20" w 48" l okamoto psg-125 surface grinder, auto idf,
20" w 48" l okamoto psg-125 surface grinder, auto idf,
20" W 48" L Okamoto PSG-125 SURFACE GRINDER, AUTO IDF,
20" Width 48" Length Okamoto PSG-125 SURFACE GRINDER, AUTO IDF, 3X AUTO FEEDS, COLUMN TYPE, 20" WHEE

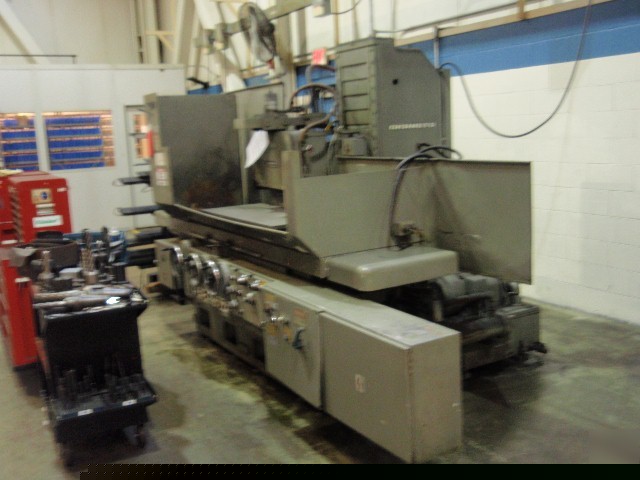

20" X 48" OKAMOTO COLUMN TYPE HYDRAULIC SURFACE GRINDER
TABLE SIZE;.................................. 47.24" X 19.7"
GRINDING RANGE ( L X W 0):................... 47.24" X 20"
MAXIMUM LONGITUDINAL TRAVEL:................. 51"
MAXIMUM CROSS TRAVEL:........................ 20.86"
MAXIMUM DISTANCE WHEEL CENTER TO TABLE:...... 33.5"
LONGITUDINAL TABLE SPEEDS ( VARIABLE ):...... 1 TO 100 FPM
CROSS FEED RATE ( INTERMITTENT ):............ .2 TO 13.7"
CROSS FEED RATE ( CONTINUOUS ):............. 1 TO 16 FPM
WHEEL SIZE ( STANDARD ):..................... 20" X 2" X 5" BORE
AUTOMATIC DOWN FEED RATES:................... .0002" TO .002"
MAIN DRIVE MOTOR:............................ 10 HP A.C.
AUTOMATIC GRINDING CYCLE ( ROUGH, FINISH, SPARKOUT )
