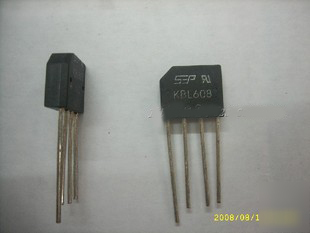

> 15 glass passivated bridge rectifier 50-1000V 6A KBL610
15 glass passivated bridge rectifier 50-1000V 6A KBL610
GLASS PASSIVATED BRIDGE RECTIFIERS voltage range: 50-1000V current: 6.0A
Surge overload rating to 250 Amperes peak
Ideal for printed circuit board
Reliable low cost construction utilizing molded
plastic technique results in inexpensive product
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 ambient temperature unless otherwise specified.
Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
Maximum recurrent peak reverse voltage VRRM 200 400 (***) 800 1000 V
Maximum RMS voltage VRMS 140 280 420 560 700 V
Maximum DC blocking voltage VDC 200 400 (***) 800 1000 V
Maximum instantaneous forw ard voltage
Maximum reverse current @TA=25 A
at rated DC blocking voltage @TA=100 mA
Operating junction temperature range Tj
Storage temperature range TSTG
Lead solderable per MIL-STD-202 method 208
