Winmax pc RS232 interface digital multimeter dmm

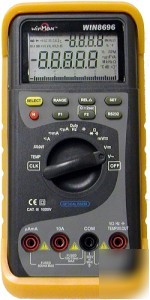

WINMAX AUTO/MANUAL 5-DIGIT PC RS232 DMM, WIN8696
The Winmax Win8696 is an auto-range 8,000/80,000 count digital multimeter with high accuracy and resolution. It can measure AC/DC current and voltage up to 1000 volts and 10 amps. You can also use it to measure a variety of parameters such as capacitance, resistance, duty cycle, diode test and even temperature.
This meter is packed with many nice features such as a built-in quartz clock, dual display, which can show you the calculation result with pre-set parameters on the 2ndary display. It even comes with a speaker that can read the measurement value for you through the optical RS232 port.
This meter comes with a RS232C port and compatible software, so you can easily hook it up with a computer to display, record and plot your measurement on your computer. It graphic software has a unique dynamic scale so even a tiny variation will be reflected on the computer.
* ACV: 8V / 80V / 0.8% 750V 1.0% (input impedance 20 M )
* DCV: 80mV / 800mV 0.8% 8V / 80V 0.5% 800V / 1000V 0.8% (input impedance 20 M )
* AC Current: 800 A / 8000 A / 80 mA / 800mA 1.2%, 8A / 10A 1.5%
* DC Current: 800 A / 8000 A / 80mA / 800mA 1.0% 8A / 10A 1.2%
* Resistance: 800 / 8K / 80K / 800K 1.0% 8 M / 80M 1.2%
* Capacitance: 80nF 3% 800nF / 8 F / 80 F 2%, 100 F 3%
* Duty Cycle: 5Hz ~ 500KHz, Range: 10% ~ 90%
* Frequency: 10Hz ~ 10MHz 0.02%, Sensitivity: 600mV
* Continuity: Buzzer goes off while the resistance is lower than 100 ohms
* Square wave output: about 2.4 volts
* Temperature: - 50 C - 400 C
* Display: LCD Size 44mm X 70mm
* Power: 2 X 1.5V (AAA Type)
Dual Display with bar graph (Max8000/80000 counts selectable)
ACV and DCV measurements reach up to 1000V
Logic frequency / duty cycle measurement
Data recording with max / min / avg and RELATIVE value measurement
Data Hold / Back Light / Auto Off
RS-232C infrared interface and PC Windows Software
Software calibrates automatically
Indication for battery low
Secondary plasticizing meter shell
Insulating performance reaching 1000C CATIII
Four different alarm modes: Maximum (the alarm will go off if maximum value is measured); Minimum (the alarm will go off if minimum value is measured); Range (the alarm will go off if measured value is in or out of the pre-set range);
Audio reading, Alarm setting, backlight, quartz clock
Bargraph (with 4 different types of selection)
Hi frequency measurement up to 1.000M hz with adapter (optional)
Square wave output by selectable frequency
Temperature measurement, Fahrenheit/Celsius selectable with nonlinear auto calculation
Work normally with the supplying voltage low to 0.9V
AAA battery: 2 (installed)
Measurement-value reading Speaker & cable
