Vulcan 5/16" x 10 ft capacity cnc hyd squaring shear

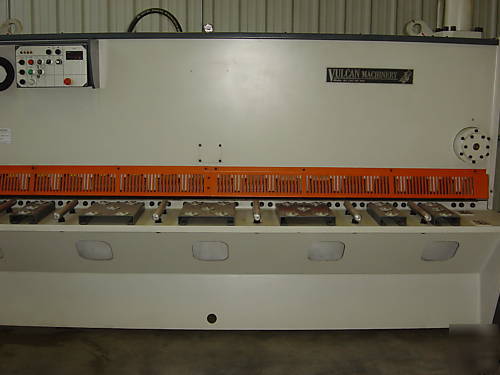

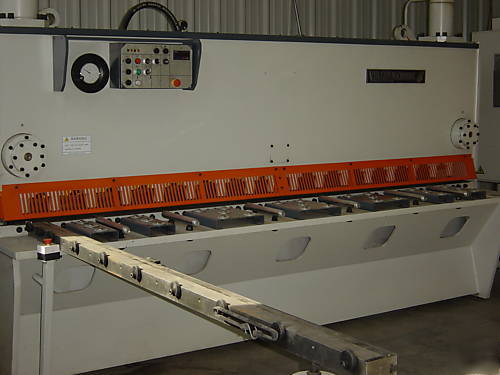

VULCAN 5/16 X 10 FT. CAPACITY CNC HYDRAULIC SQUARING SHEAR
4. Depth of throat 4 inches
5. Cutting angle 0.5-2 deg (powered)
6. Stroke - .590 1.771 inches
8. Powered clearance adjustment
10. Maximum stroke of top beam 5.12 inches

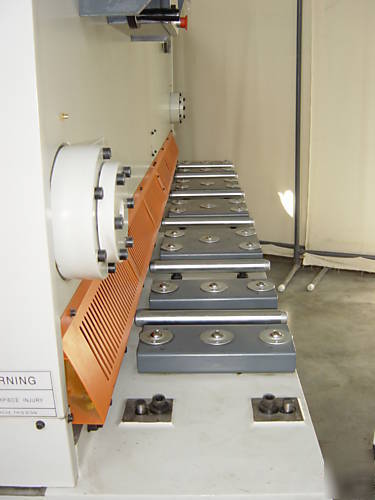

11. Maximum plate holder force 15 tons (with 17 hydraulic hold downs)
12. Maximum cutting force 20 tons

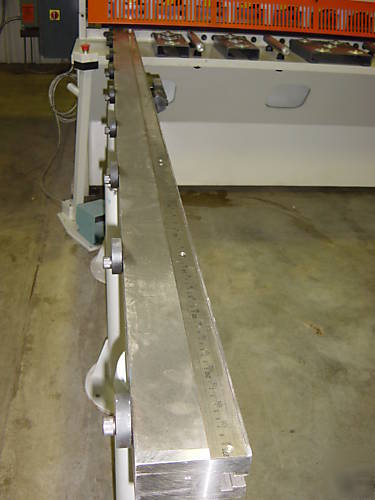

13. Range of back gauge - .200 29.5 inches
15. Overall dimension Length 148 inches / Width 117 inches / Height 86 inches
16. Weight of machine 14,300 lbs

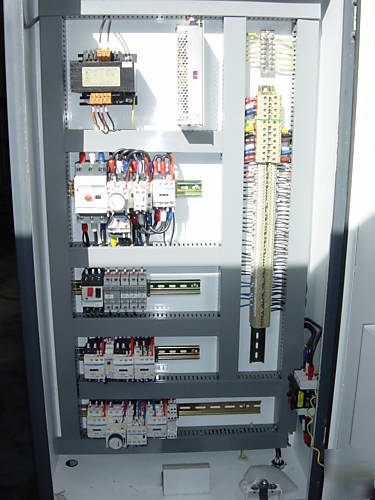

17. Electrical requirements 220/480 volts 3 phase 60 cycles
18. Comes with operation manual
Condition REPO/SLIGHTLY USE.
Machine repossessed from a defunct aircraft engine plant. They purchased the machine to shear stainless steel and inconel material.
Machine under power, ready to demo.
Price includes loaded on a truck, FOB Wichita, KS.
