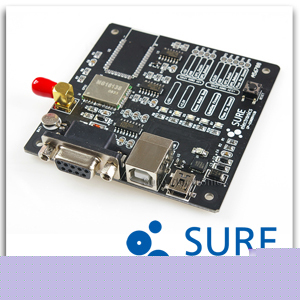

New mini usb gps module demo board no bluetooth version
?78.74(L) X78.74 (W) X16.00 (H) 0.2mm
* Power-over-USB, no additional power supply is needed
* RF Receiver of Noise Figure at 2.5 dB
* High Sensitivity -161 dBm( indoor)
* Seamless Outdoor/Indoor Operation
* Support standard NMEA-0183 V 3.01
* Graphic GPS testing software provided for free
* Baud rate modification software is provided for free
* Interface: USB Mini-B and USB B port, RS232 Female Interface, bluetooth interface
* RoHS-compliant components from trustworthy suppliers guarantee quality
Comply with relative descriptions of electrical characteristics of USB V2.0 standard
Comply with relative descriptions of electrical characteristics in RS-232F standard
Comply with relative descriptions of Bluetooth Interfacev2.0 Serial Port Profile(SPP)
4800,9600,19200,38400,57600,115200
* Vehicle navigation and tracking
* Ideal for PC, PDA and other consumer devices
* Develop your own GPS navigation system or connect to a pocket pc for a low cost navigation system.
* Use in vehicle or boat for trip recording and distance to destination information.
* The possibilities are endless with this easy-to-use GPS module.
* Mini USB Interface GPS Module Demo Board no Bluetooth 1
* External magnetic antenna SMA connector for GPS receivers 1
Download Virtual COM Port Device Drivers
MStar MiniCDU to test GPS module
Note: The above application can run smoothly in Window XP SP2 and we don't provide technical support for the application.
