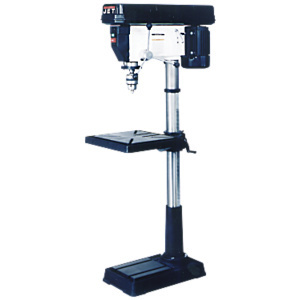

Jet 354170 jdp-20MF drill press 1-1/2HP, 1PH, 115/230V
Jet JDP-20MF Drill Press 1-1/2HP, 1Ph, 115/230V
Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
Rotating, 45? tilting, crank-operated worktable with quick release clamp
On/off switch located on front of the drill press head
A 1/2" diameter external positive depth stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Spindle is supported by high quality ball bearings
Built-in work lamp on all models, bulb not included.
Motor 1-1/2HP, 1Ph , 115/230V, Prewired 115V
Range of Spindle Speeds (RPM) 150 4,200
Max Distance Spindle to Table ( in.) 29-1/8
T-Slots Number and Size (in.) 5/8
Base Dimensions (LxWxH/ in.) 13-5/8 x 22-3/8
Drilling Capacity Cast Iron (in.) 1
Table Size (in.) 18-5/8 x 16-1/8
Drills to Center of Circle (in) 20-1/2
Spindle Distance to Base (in.) 46-3/4
Overall Dimensions 33 x 19 x 67
