Marvel 8 mark ii vertical tilting band saw

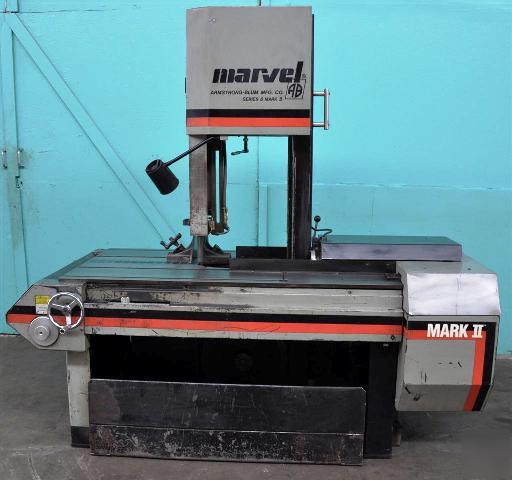

MARVEL 8 MARK II VERTICAL TILTING BAND SAW
USED MARVEL 8 MARK II VERTICAL TILTING BAND SAW
Capacity: Blade at 90 : 18 (457 mm) Horizontal, 22 (560 mm) Vertical
Capacity: Blade at 45 : 18 (457 mm) Horizontal, 12.75 (324 mm) Vertical
Speed Range: 50 - 450 fpm (15 - 137 m/min) infinitely variable speed drive system
Front Mounted Speed Control: Allows blade speed to be adjusted from operator s control station
Feed Range: 0 - 140 lbs. (64 kgf) infinitely variable direct reading scale balance beam
Work area 24.25 x 33 (616 mm x 838 mm)
Four machined T-slots accept .625 (15.5 mm) T-Bolts
Column and blade tilt up to 45 right and left of vertical; work always stationary.
Jaws can be shifted to either right or left side of blade.
Built-in available with either flood, or ECO DROP system.
Controlled by on-off selector switch at operator s station.
Blade: 14' 6" long x 1" wide, .035" thick.
240/480, 3 phase, 60 Hz (PREWIRED 460 VOLTS)
Totally enclosed motor-built-in integrally
Transformer provides low voltage control (120 volts) to all push buttons at operator s control panel and machine lighting circuits.
Control apparatus mounted in moisture proof NEMA 12 compartment.
CLEANED CHECKED AND IN VERY GOOD CONDITION
NEW REPLACEMENT COST : $19,375.00
